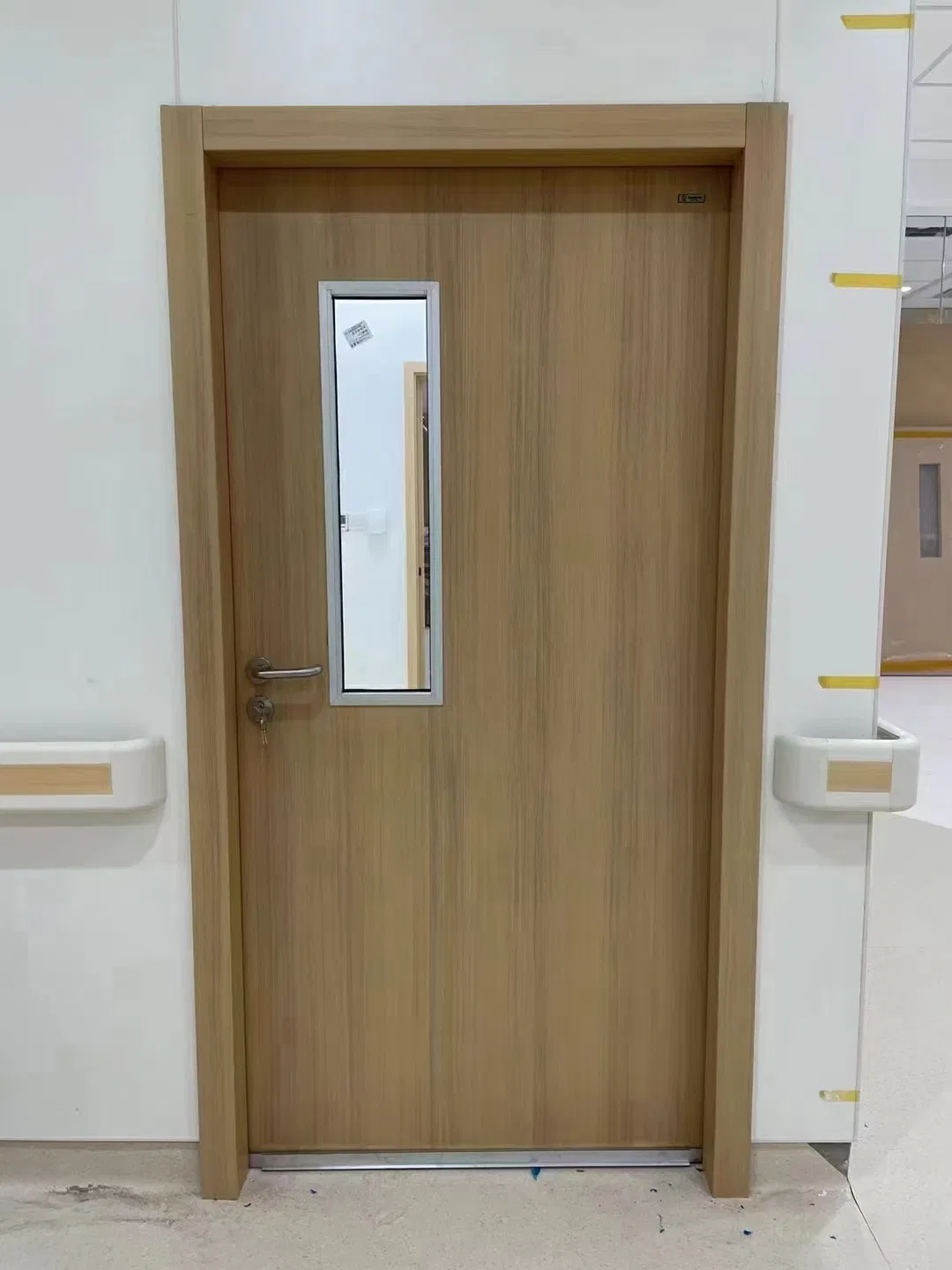

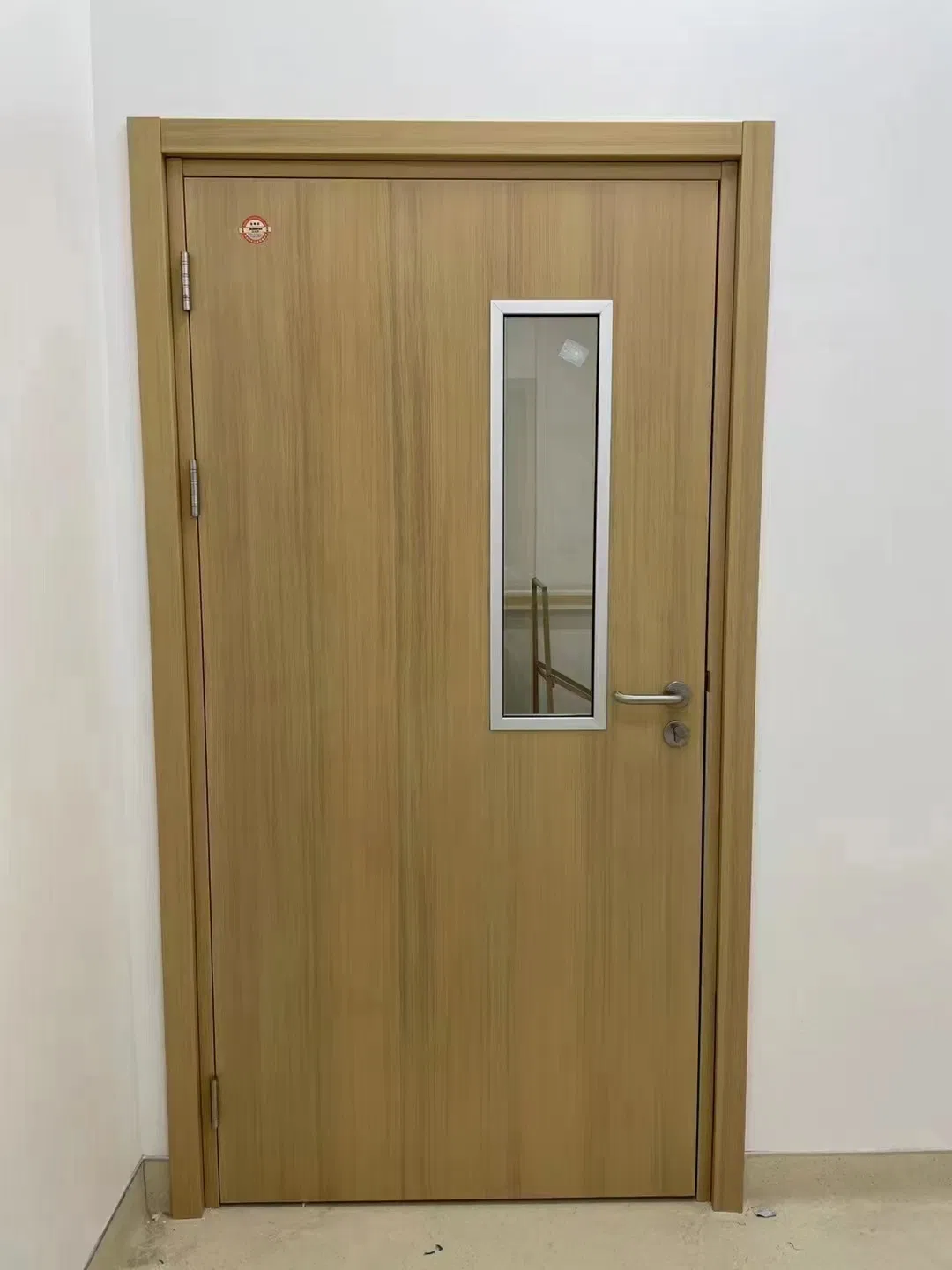

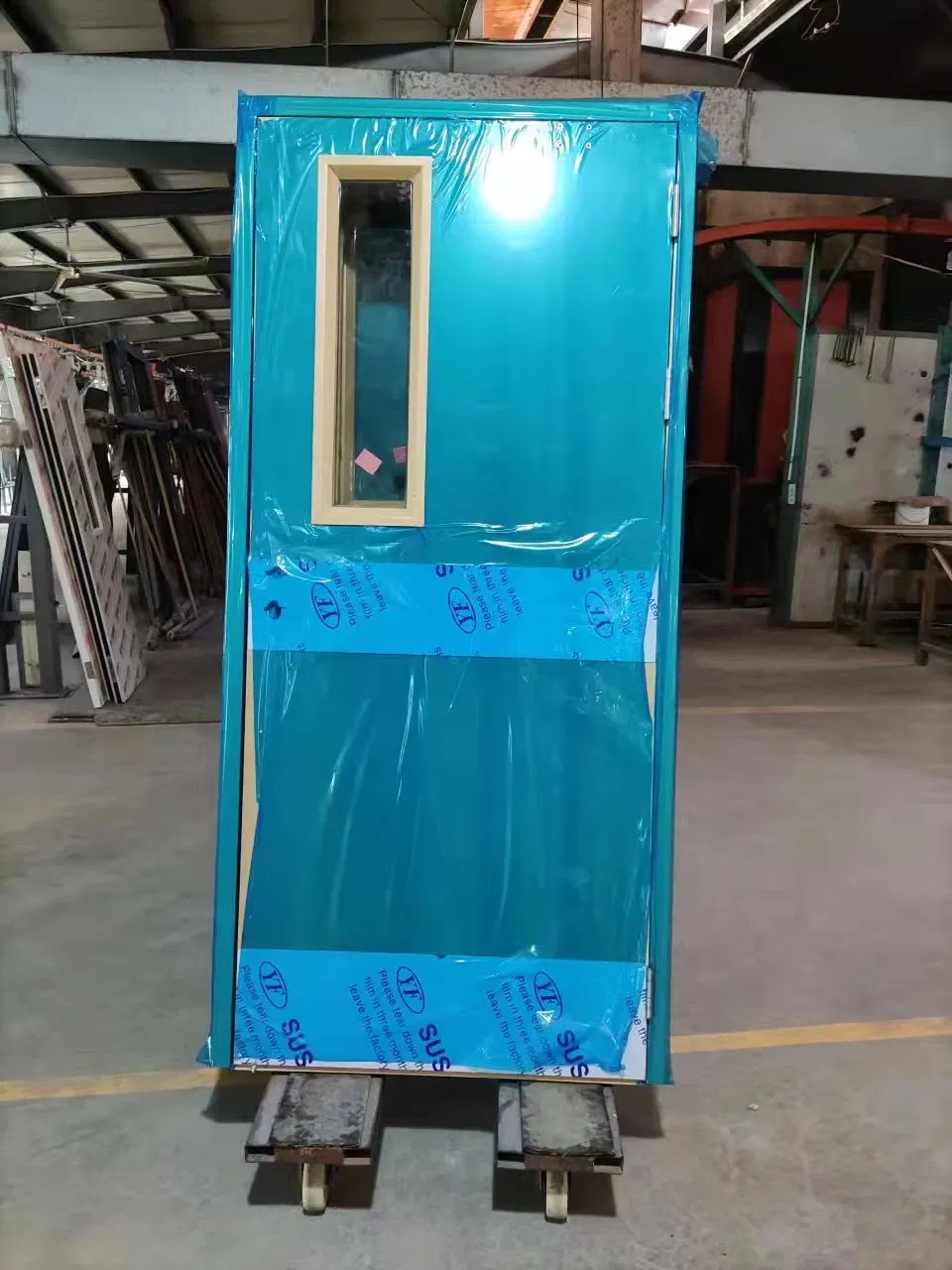

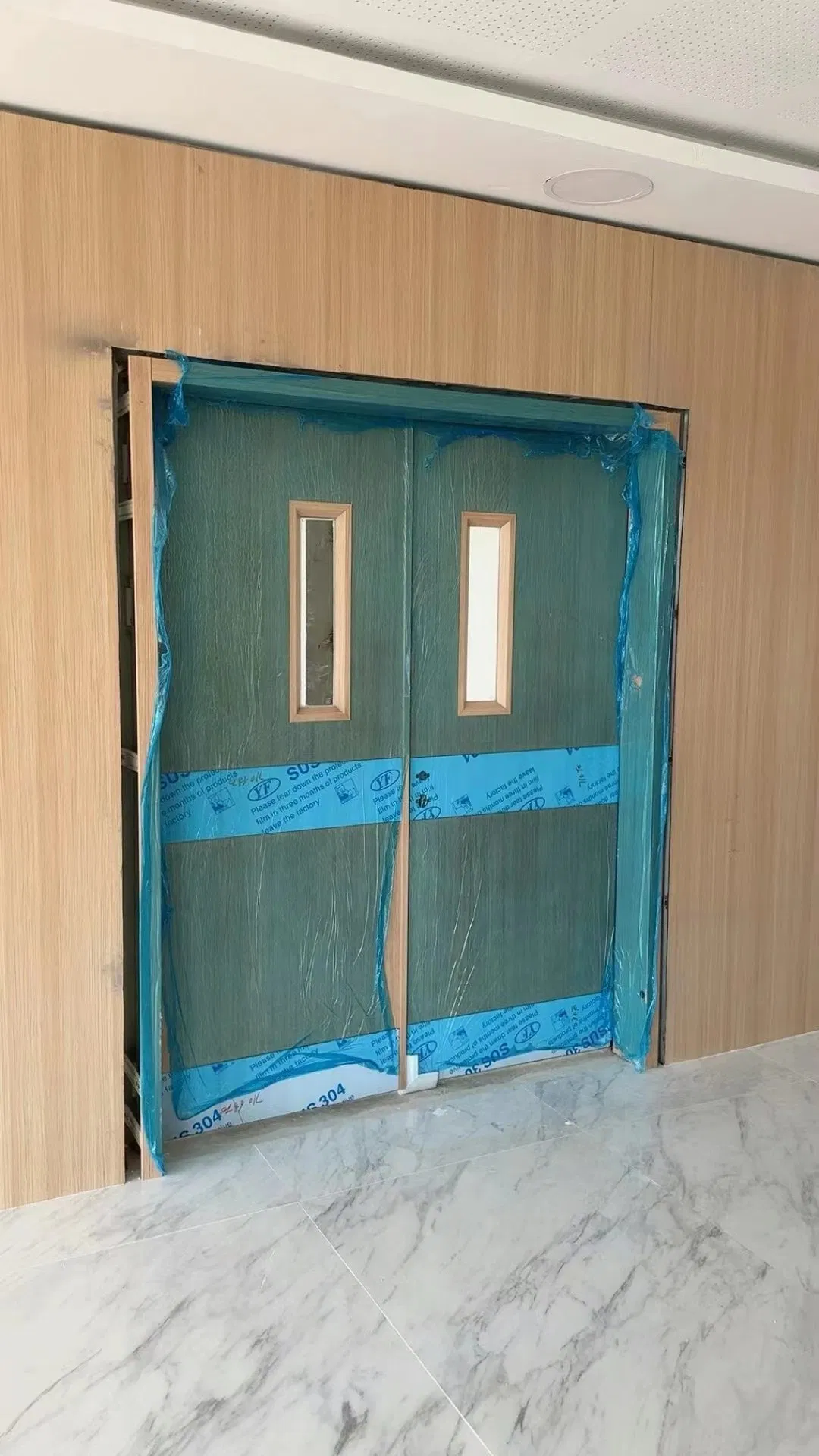

Commercial Hotel Hospital Exterior Fire Door Hollow Metal Door Frame Steel Door Frame

Customization: Available
After-sales Service: Online Technical Support
Warranty: 2 Years

Product Description

✨ Basic Information
Model NO.
FD-2023054
Material
Steel
Style
Classic
Open Style
Swing
Sound Insulation
30
Screen Netting
Fiberglass
Position
Commercial
Fire Rated Time
120 Minutes
Special Door Type
Fire Doors
Certification
UL Listed
📋 Product Description

UL (Underwriters Laboratories) Listed fire rated steel doors are tested and certified to meet specific standards for fire resistance and safety. Designed to prevent the spread of fire and smoke for specified durations, typically ranging from 20 minutes to 3 hours.

Steel Construction: Durable and fire-resistant material providing protection against heat and smoke.
Fire-Resistant Core: Features materials such as gypsum or mineral wool to provide insulation and reduce heat transfer.
Intumescent Seals: Materials that expand under heat to form a protective barrier.
Self-closing & Latching: Automatically closes when sensing heat and stays securely locked under pressure.

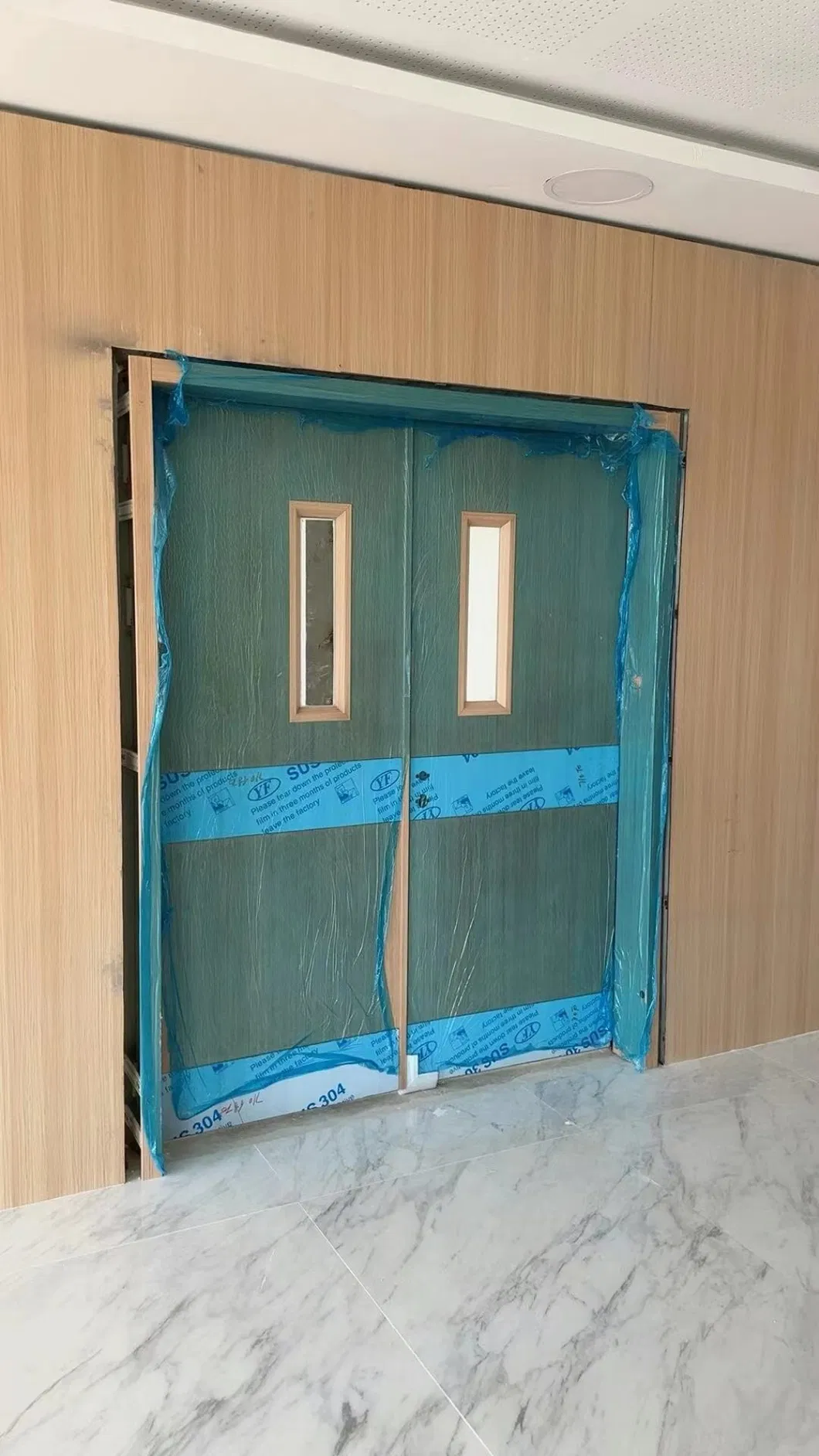

Fire Door Overview

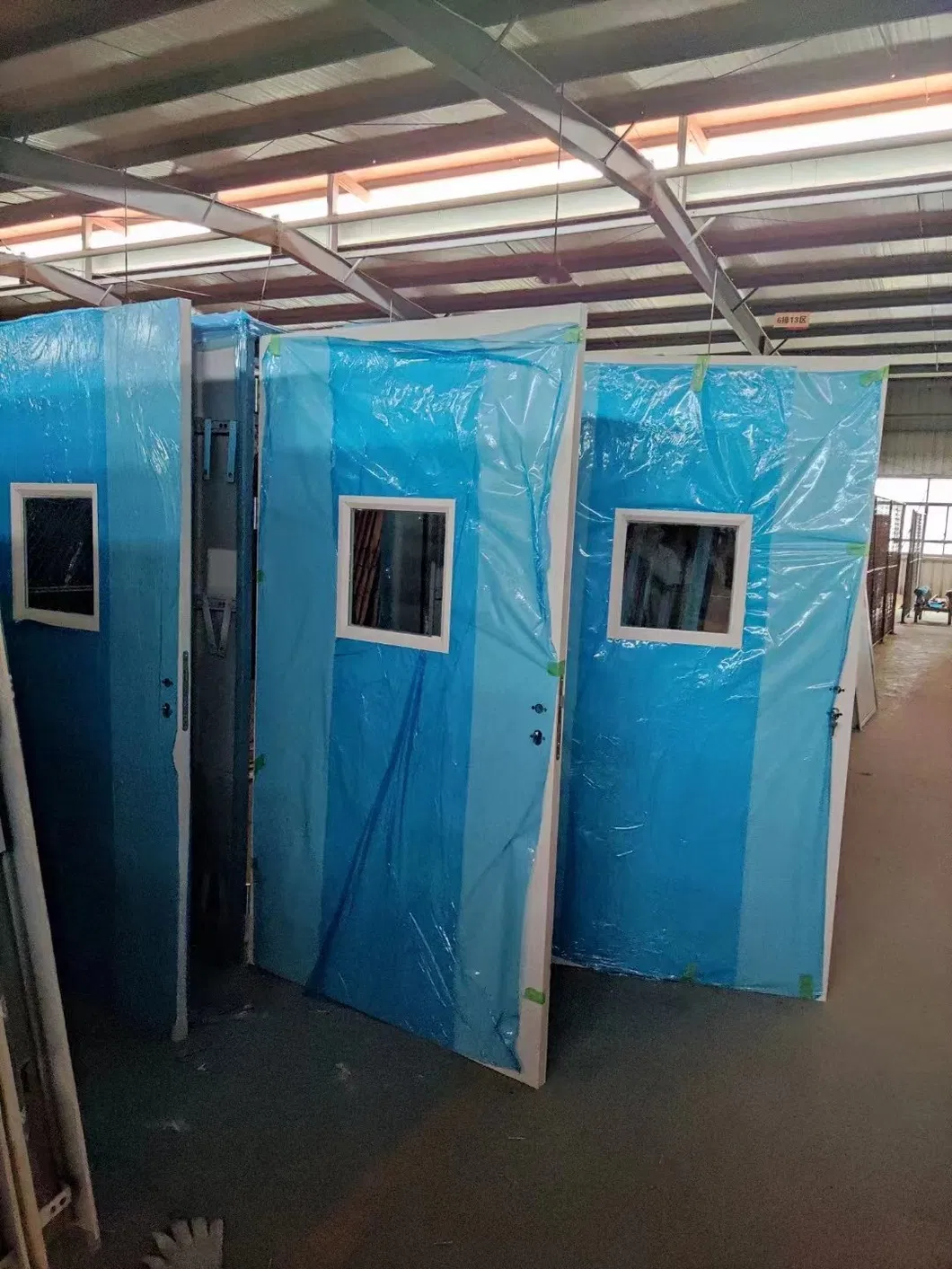

Fire Door Detail 1

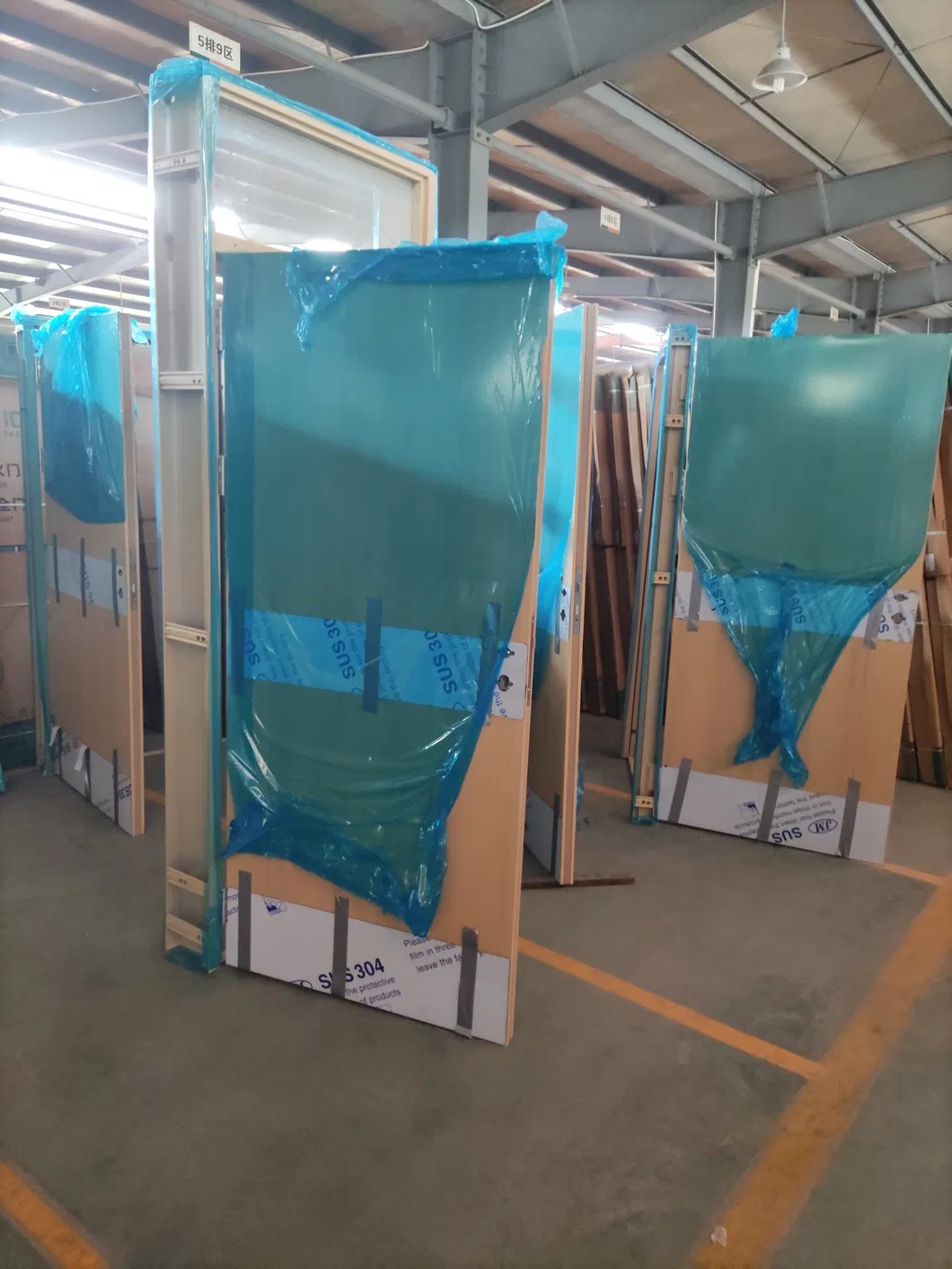

Fire Door Detail 2
📷 Detailed Photos

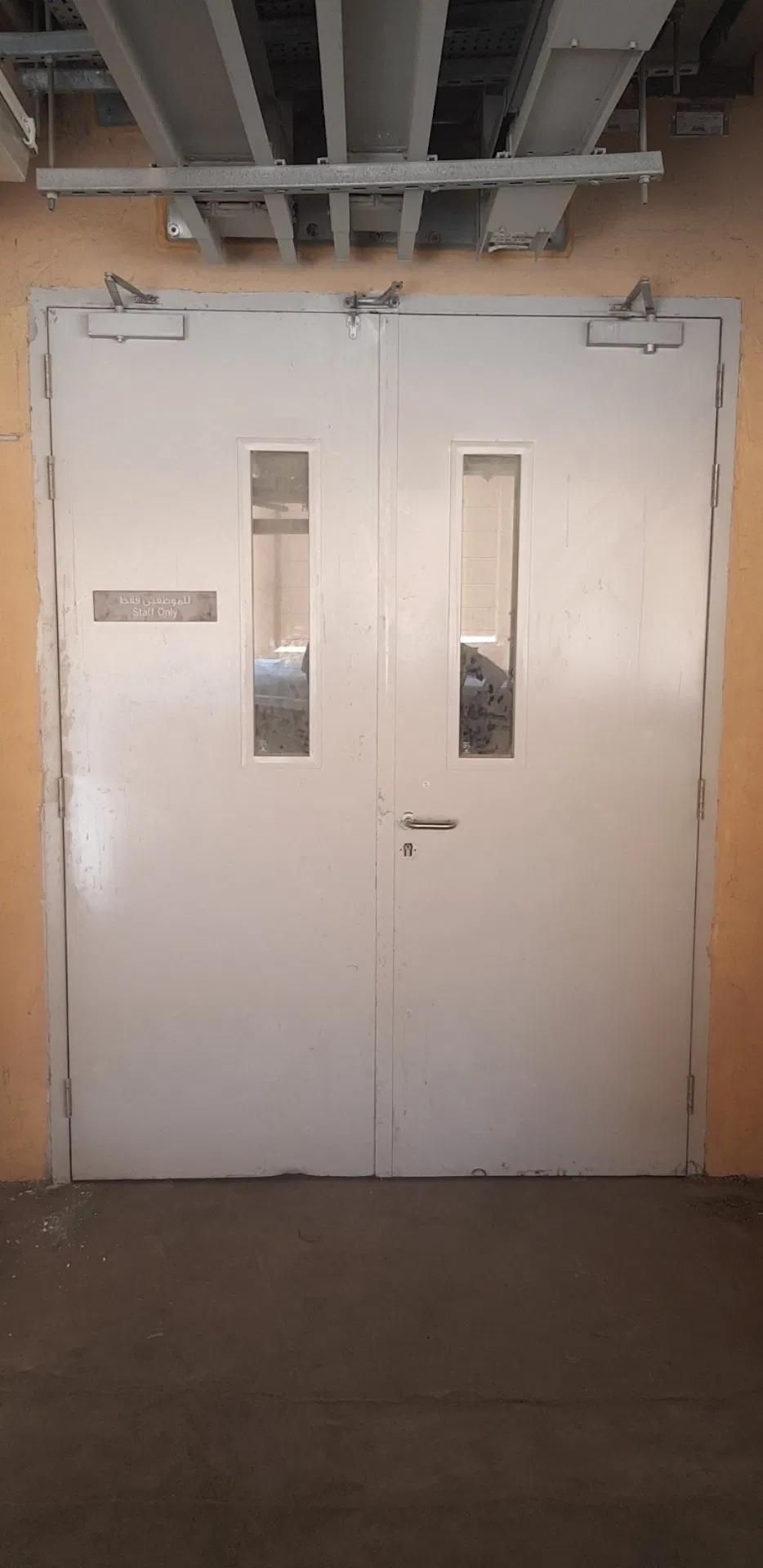

Detailed Photo 1

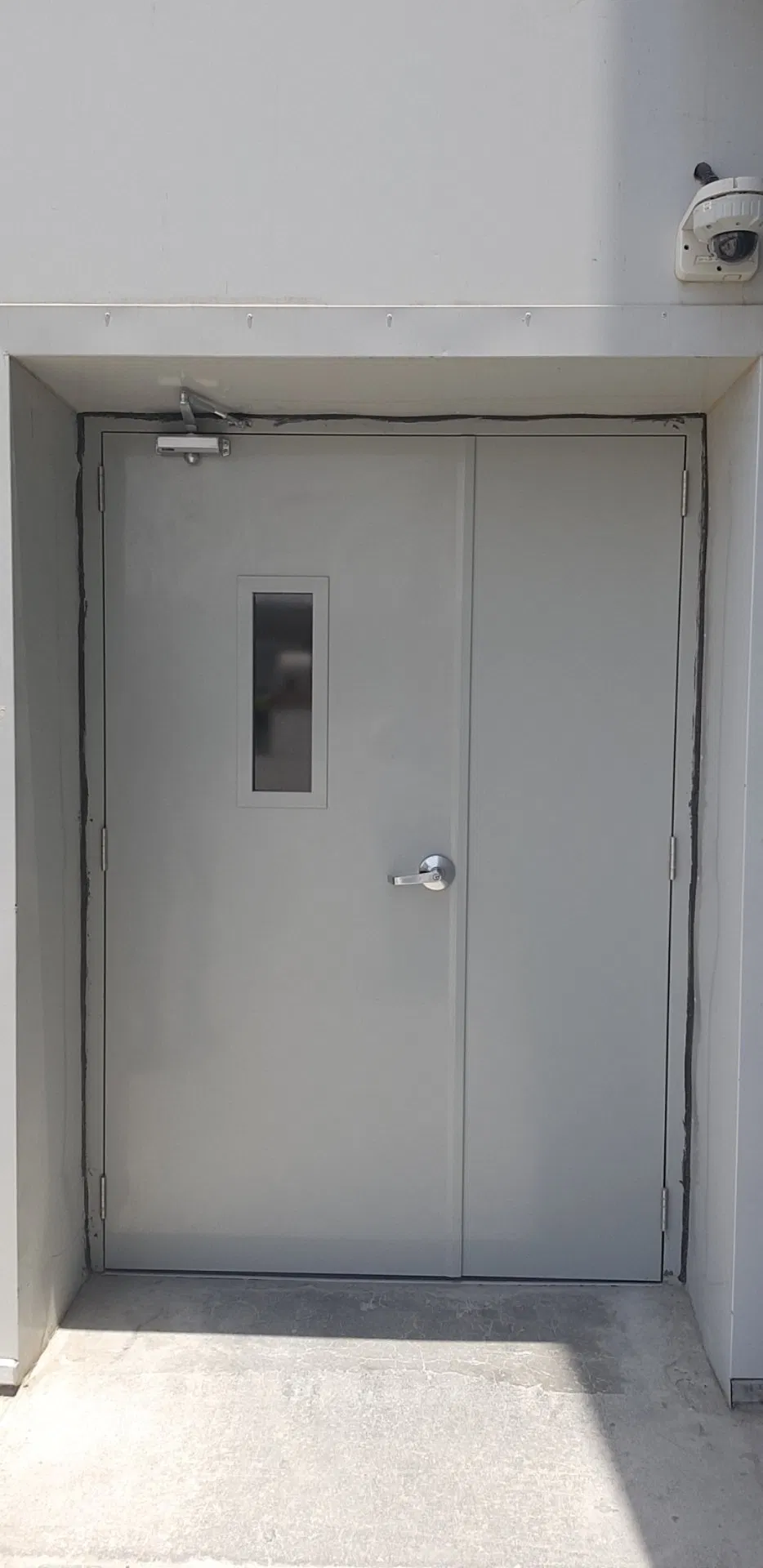

Detailed Photo 2

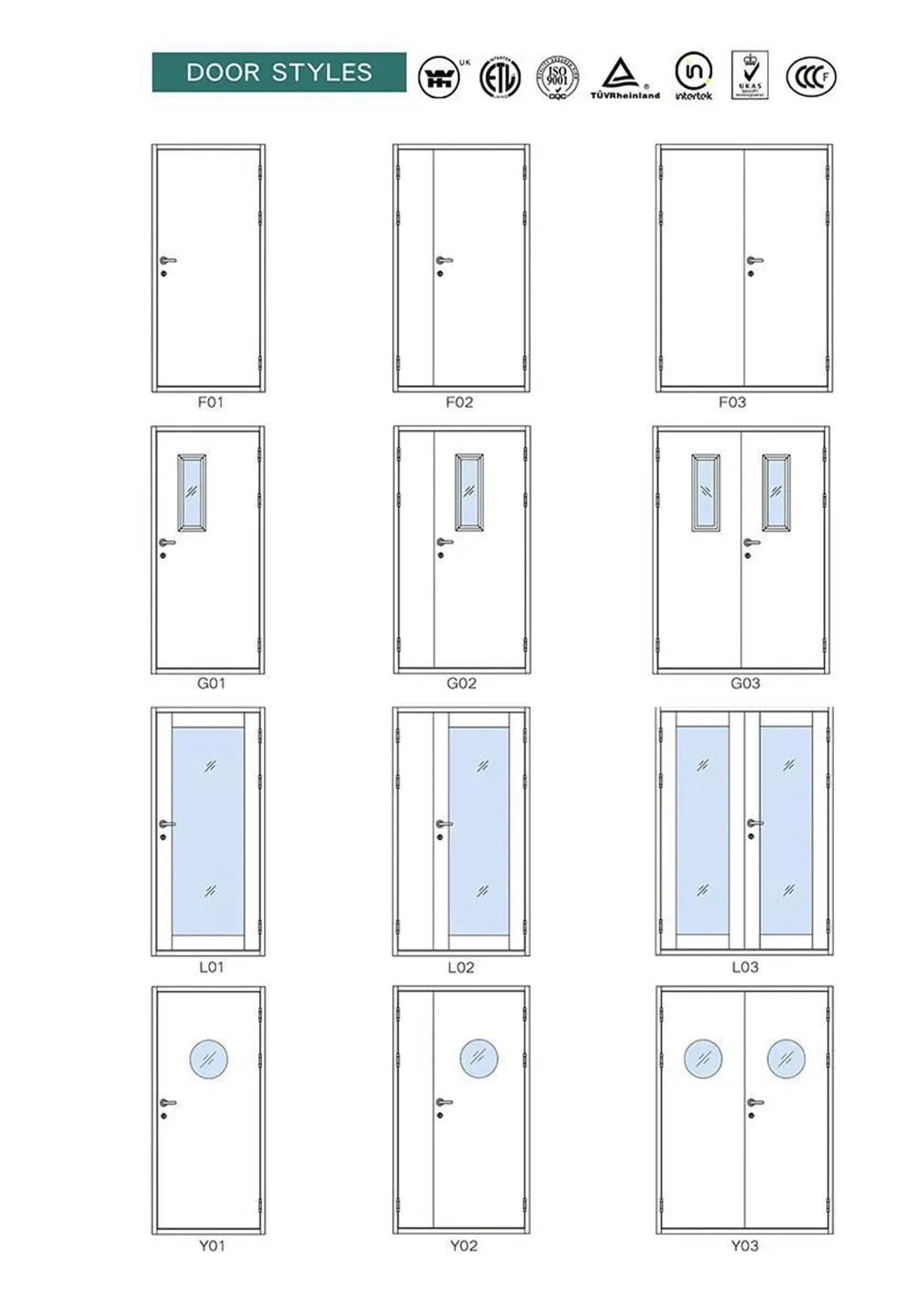

Detail Close-up 1

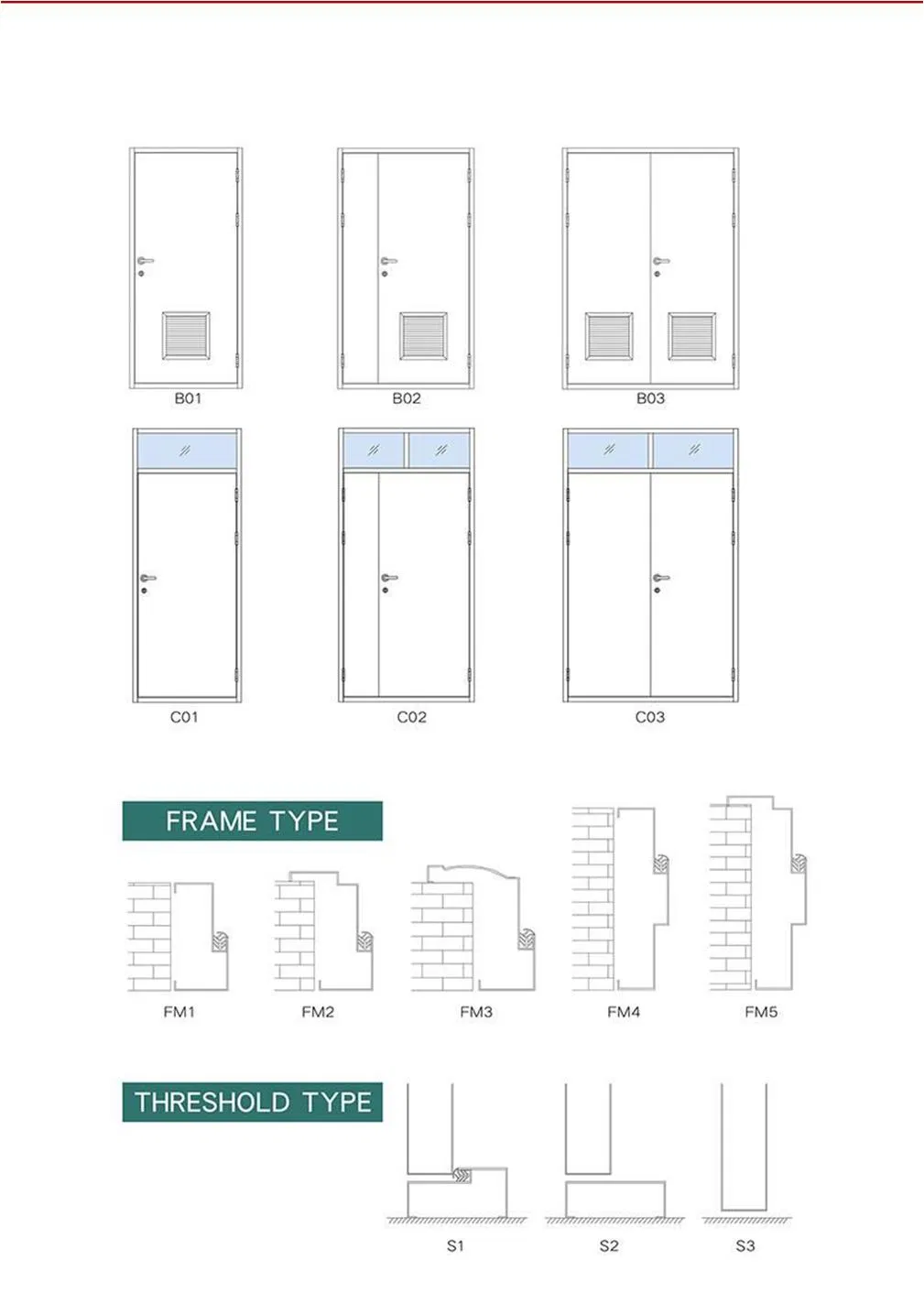

Detail Close-up 2

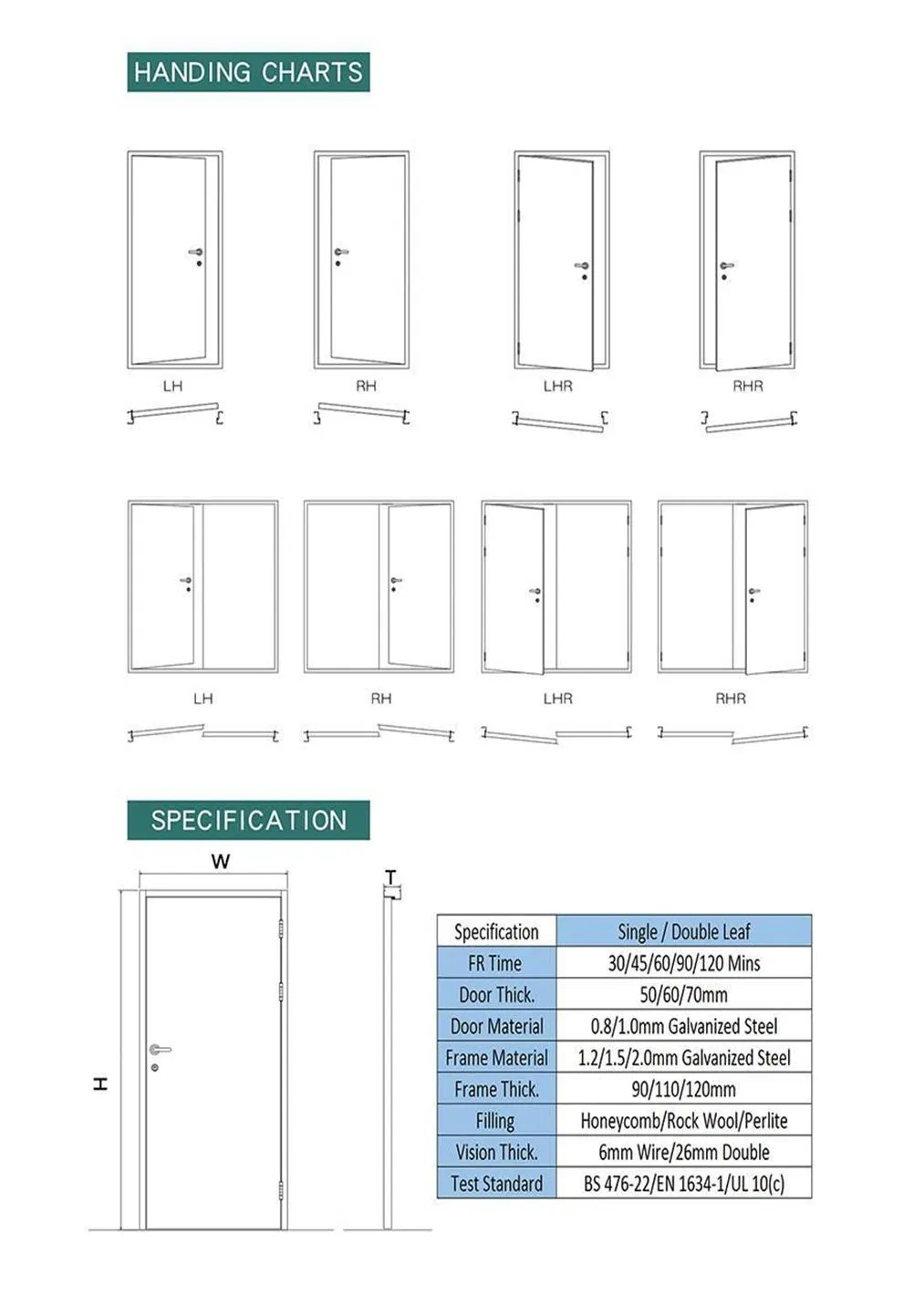

Detail Close-up 3
Assembly Detail 1

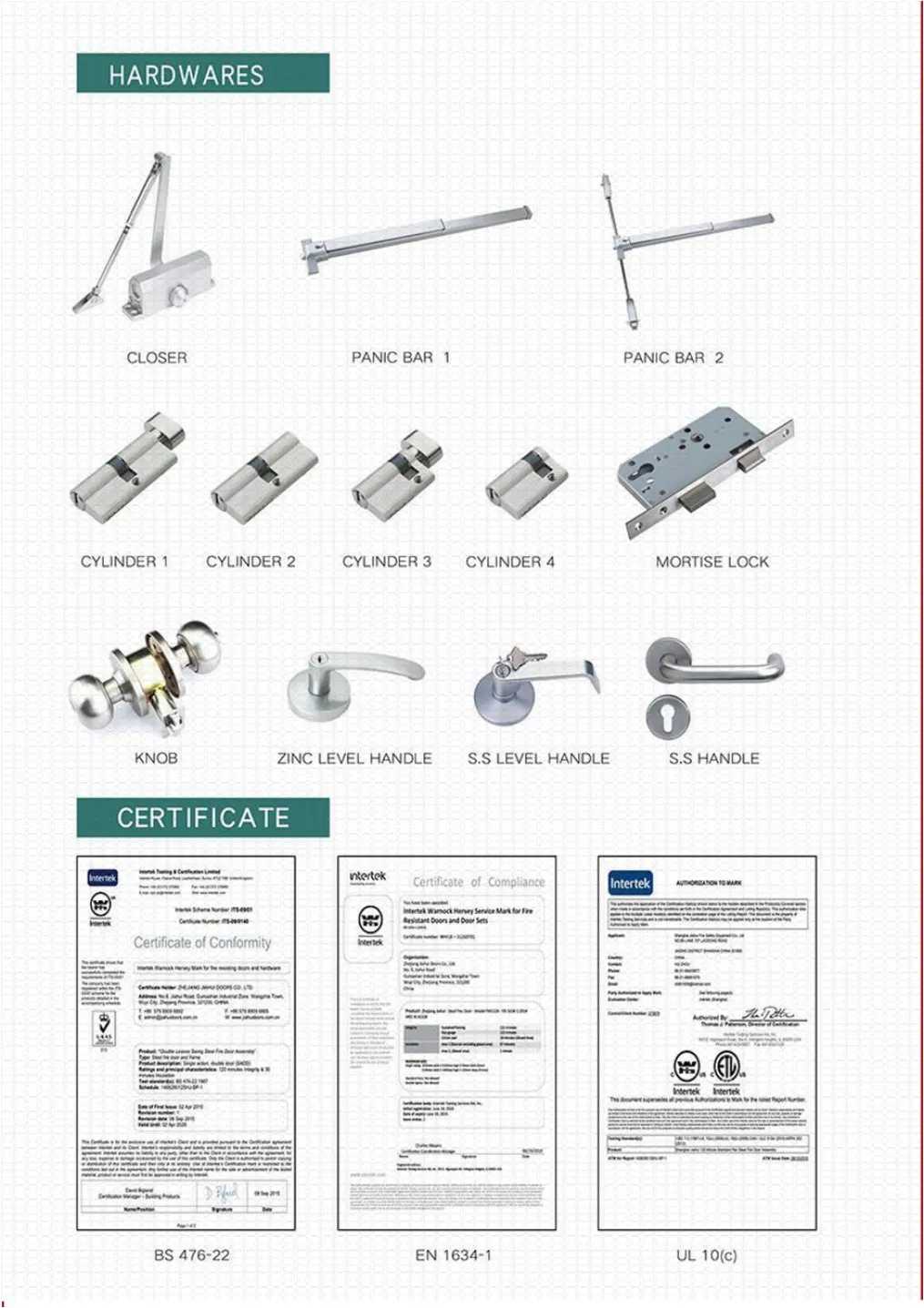

Assembly Detail 2

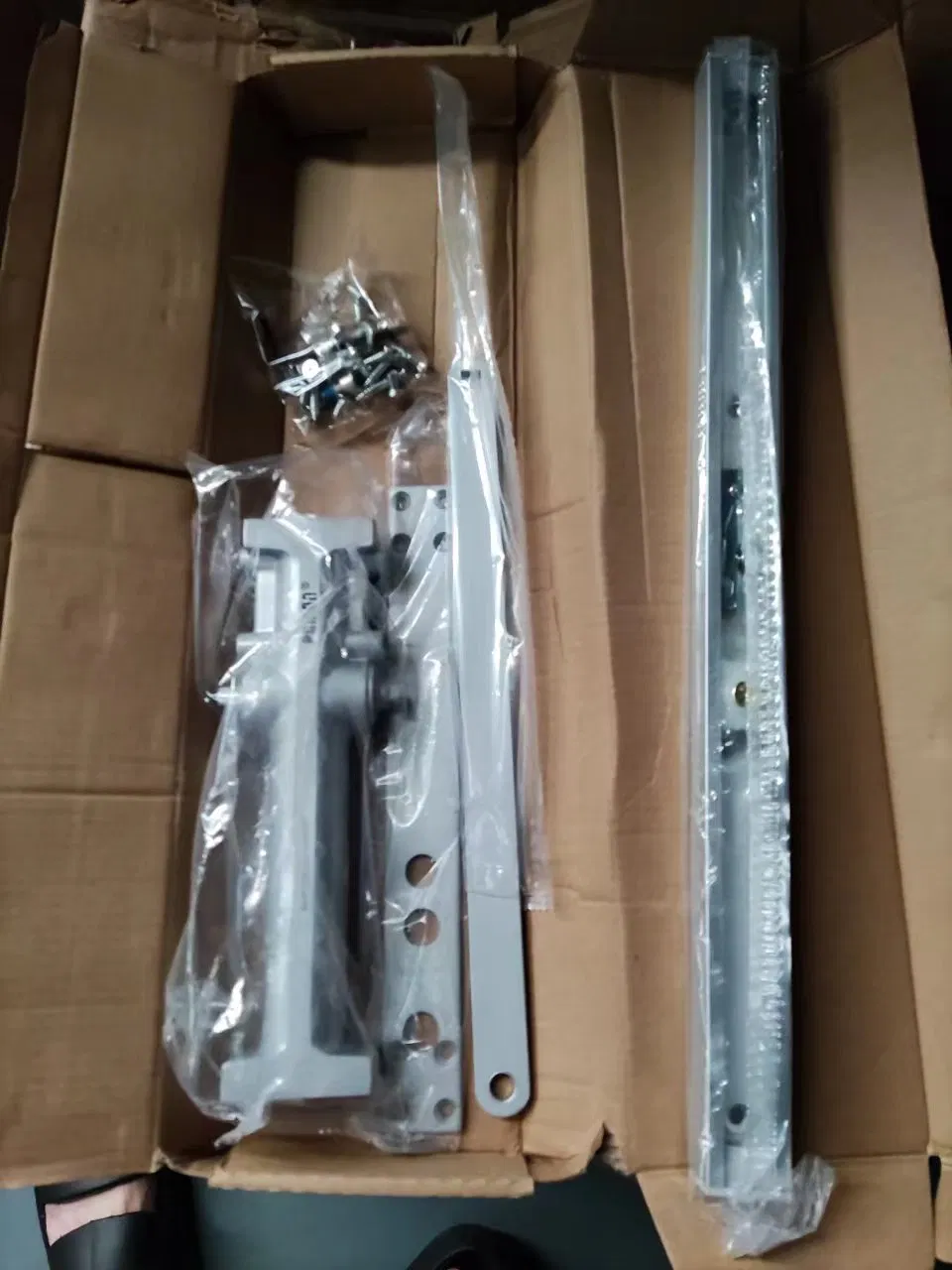

Hardware Detail 1

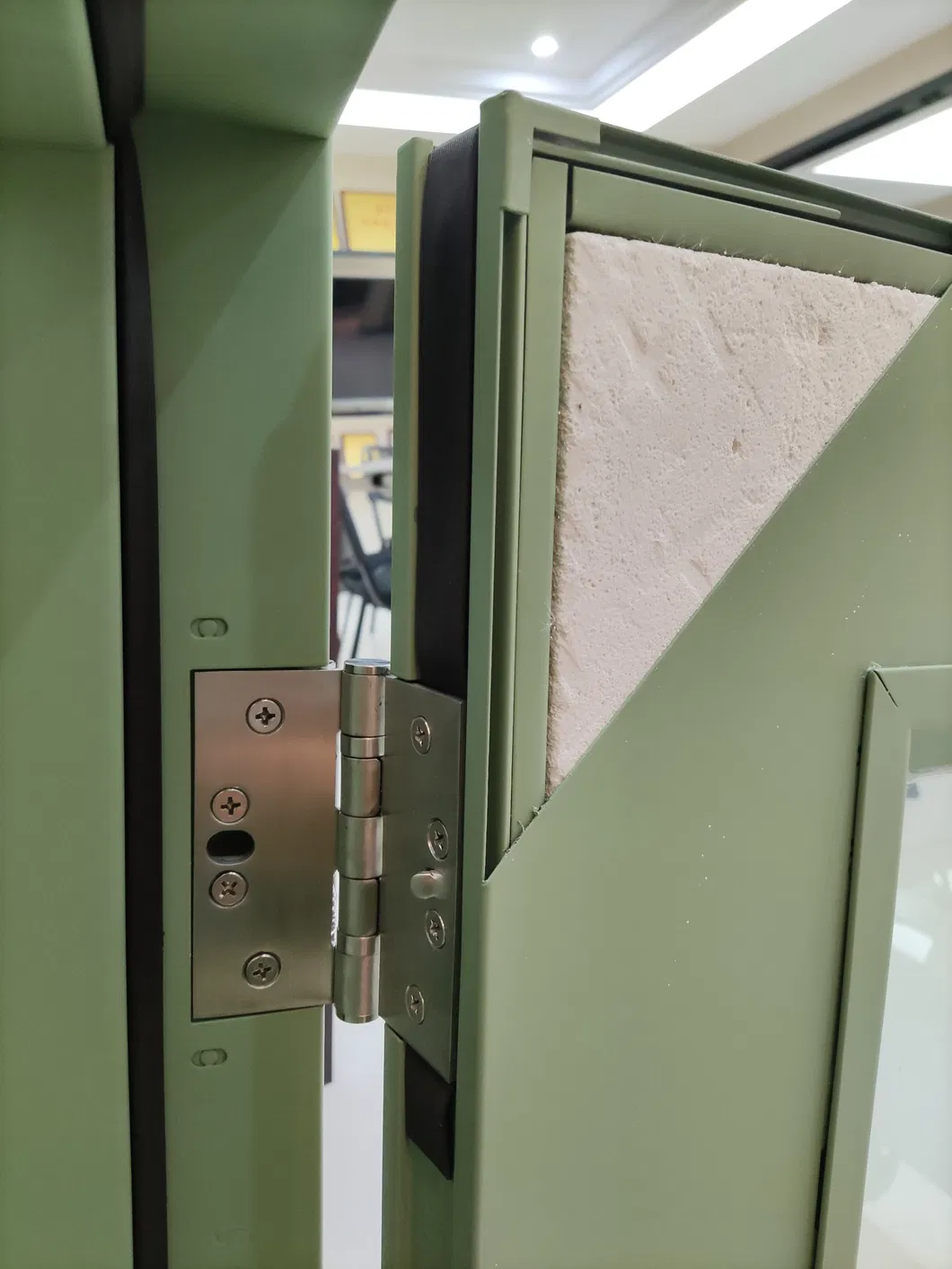

Hardware Detail 2

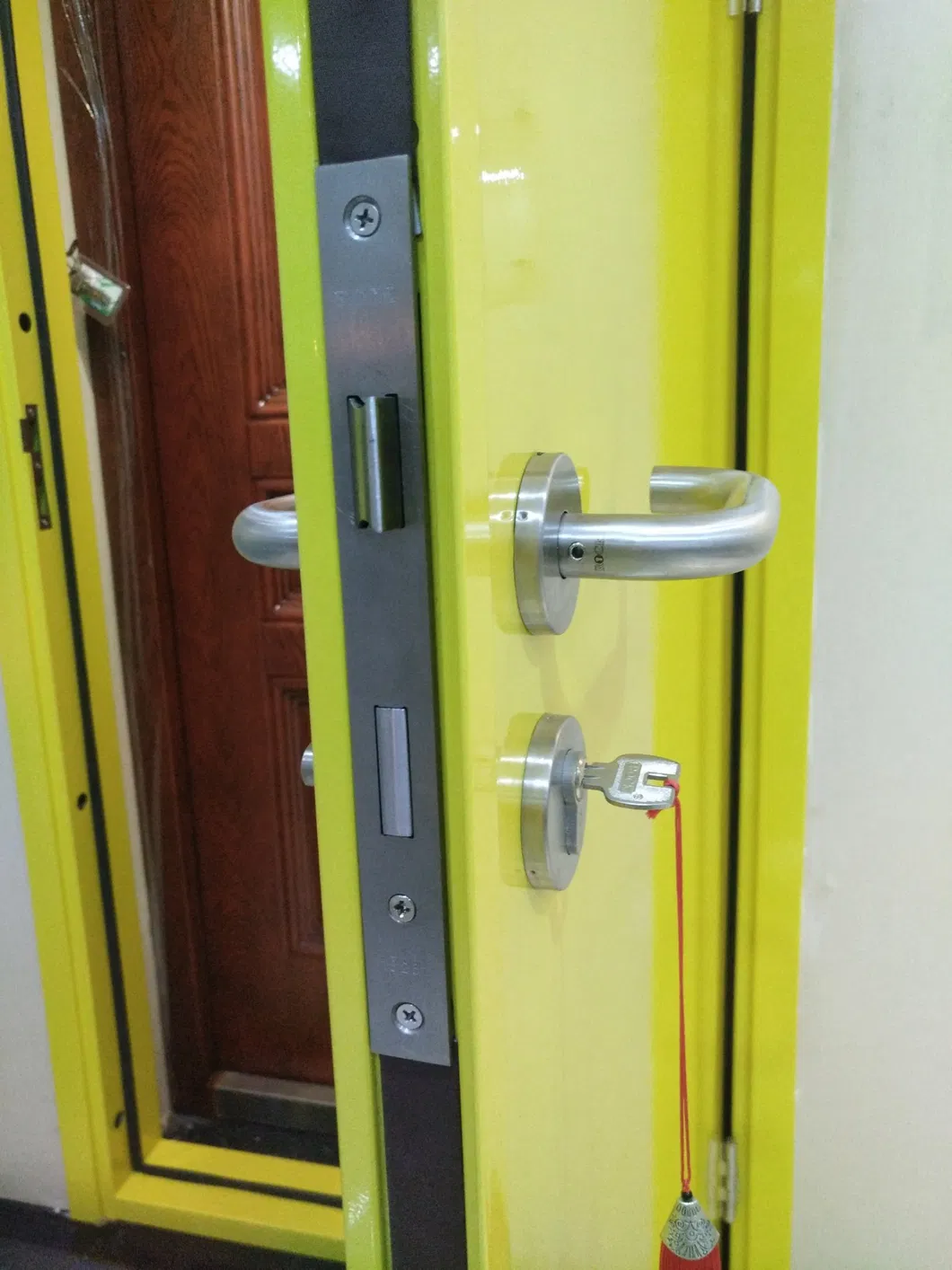

Hardware Detail 3
🖊 Product Parameters
Door MaterialGalvanized Steel
SizeCustomized per drawing
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or customized
Door leaf sheet22 Ga.-18 Ga.(1.0/1.2 mm)
Door frame sheet16 Ga.-14 Ga.(1.5mm-2.0mm)
AccessoriesLock, handle, hinges, door closer, panic bar
Vision PanelAvailable as requested
Surface treatmentPowder coated or heat transfer printing
Inner fillingPerlite or Insulated rockwool
CertificateUL 10C, UL 10B, NFPA 252, CAN/ULC S104
📦 Packaging & Shipping
Packaging 1
Packaging 2
Shipping 1
Shipping 2
🏭 Manufacturing Expertise

We are a leading supplier of various professional doors, including steel, wooden, hospital, and wrought iron doors. With over 10 years of export experience, we serve customers worldwide by utilizing high-quality materials and advanced manufacturing techniques.

Our commitment to excellence involves working closely with clients to provide customized solutions. Before production starts, we provide detailed CAD drawings to ensure every specification is met precisely. Our fire-rated steel doors are UL listed, ensuring they meet strict performance and safety standards.

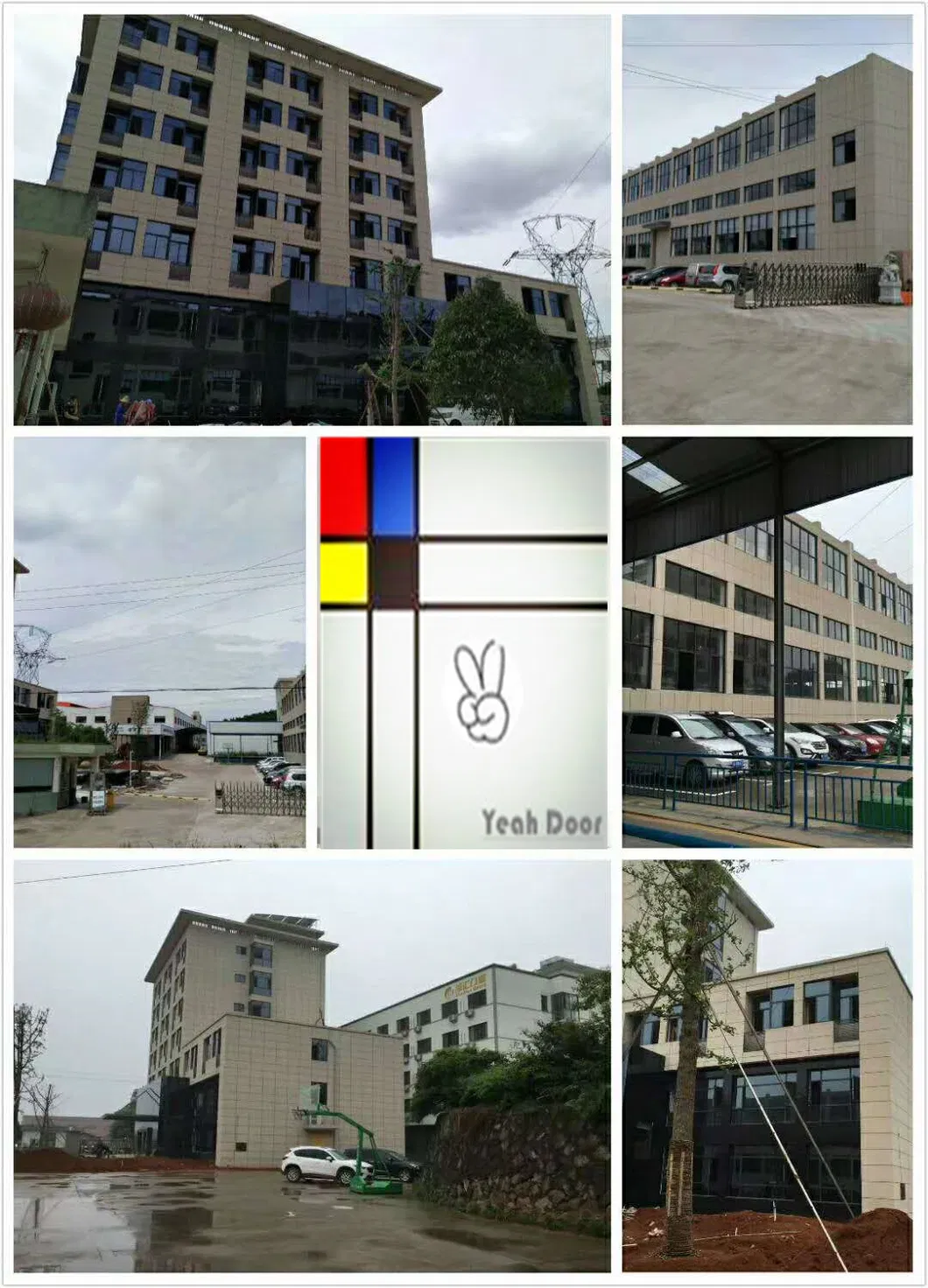

Manufacturing Process

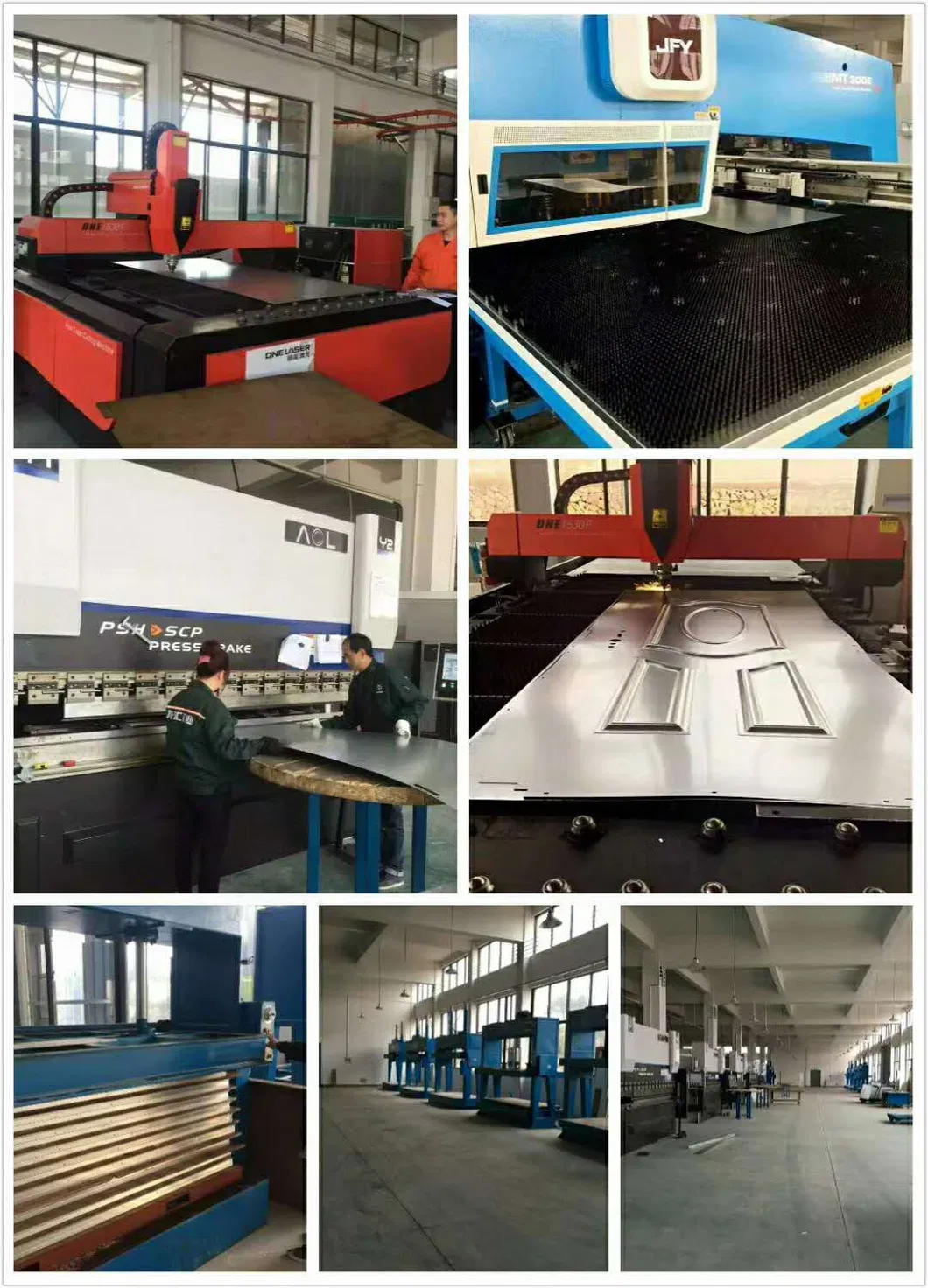

Quality Control
❓ Frequently Asked Questions
What is the maximum fire rating time for these steel doors?
Our UL Listed fire rated steel doors can provide fire resistance for up to 120 minutes (2 hours).
Can the door size and frame depth be customized?
Yes, all doors are manufactured based on customized CAD drawings to fit your specific project requirements.
What materials are used for the inner filling?
We typically use high-performance fire-resistant materials such as Perlite or Insulated Rockwool.
Are the doors available with vision panels?
Yes, fire-rated doors can be produced with or without vision panels as per your request.
What surface finishes do you offer?
We offer durable powder coating or heat transfer printing which can create a rich wooden color appearance.
What standards do these doors comply with?
Our doors meet multiple international standards including UL 10C, UL 10B, NFPA 252, and CAN/ULC S104.
