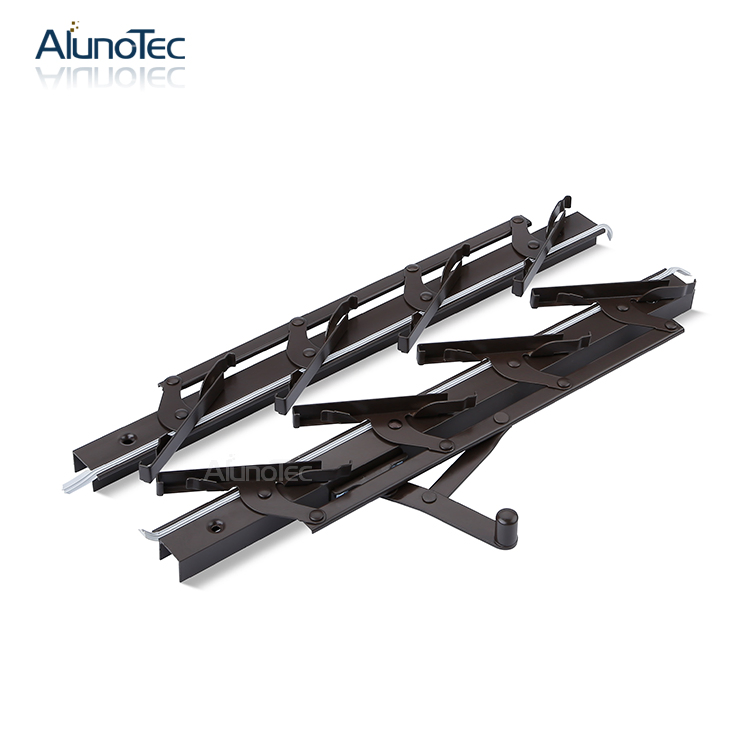

Shutter Blinds Glass Partition Frame

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

SF-600

Style

Modern

Application

Louver Windows

Kind

Slat

Structure

Horizontal

Open Type

Manual

Usage

Living Room

Function

Ventilation

Customized

Standard

Origin

China

HS Code

7610900000

Capacity

100,000 Blades / Week

✨ Product Description

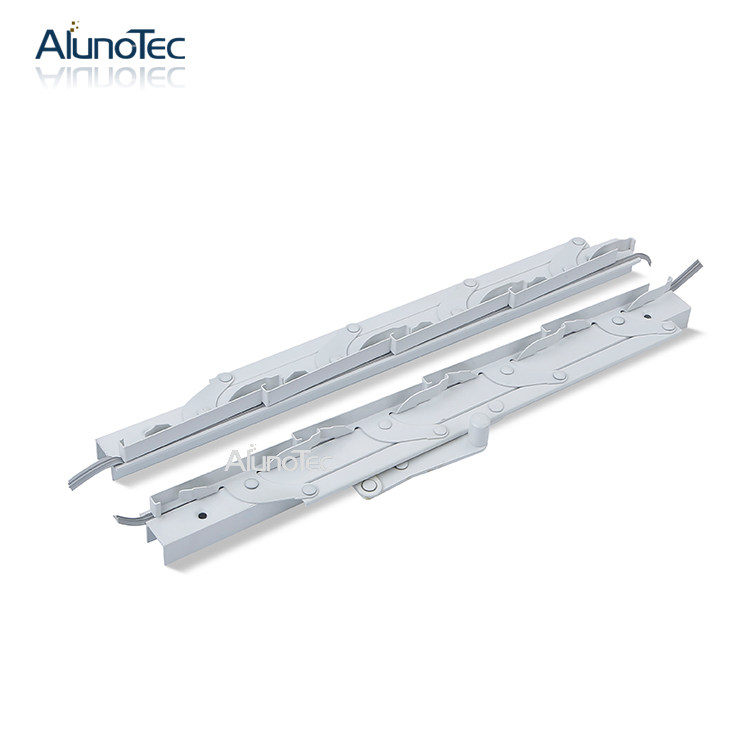

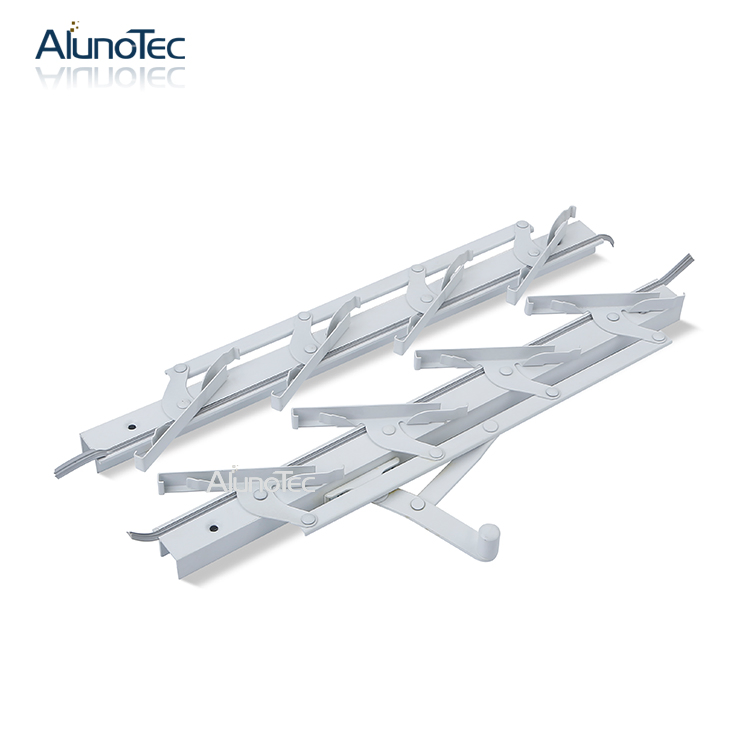

Shutter Blinds Glass Partition Frame Main View

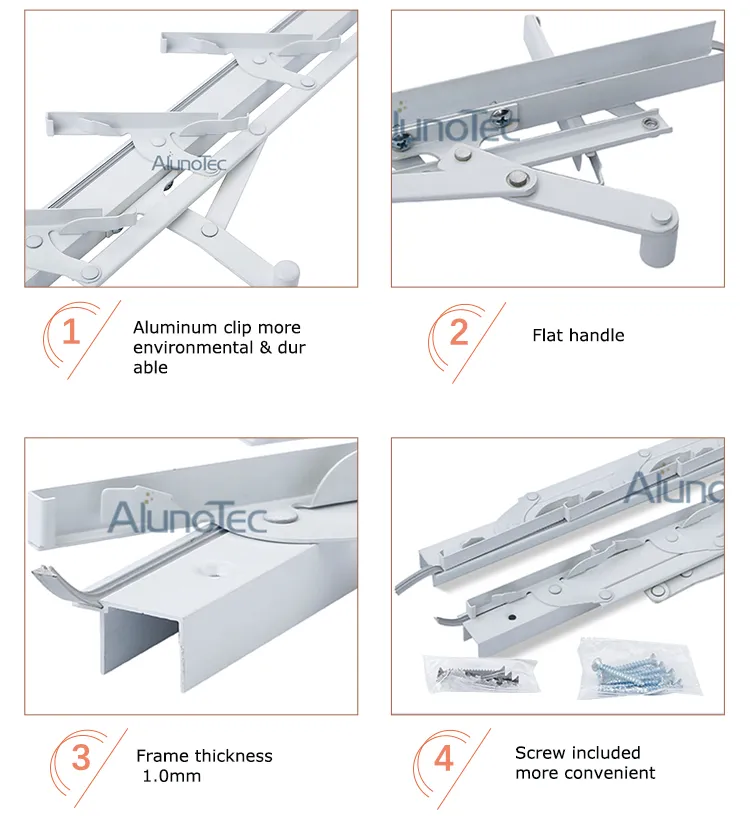

🛠️ Model Configuration: SF-600

Component	Feature	Details
U-Frame Channel	Size	25 x 16mm
	Thickness	1.0mm
	Surface	Anodized / Powder Coated

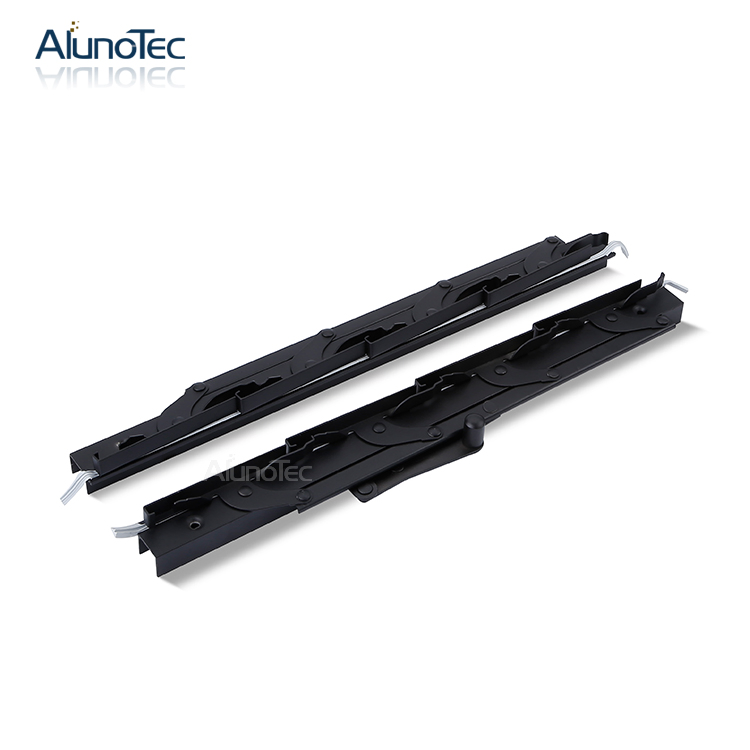

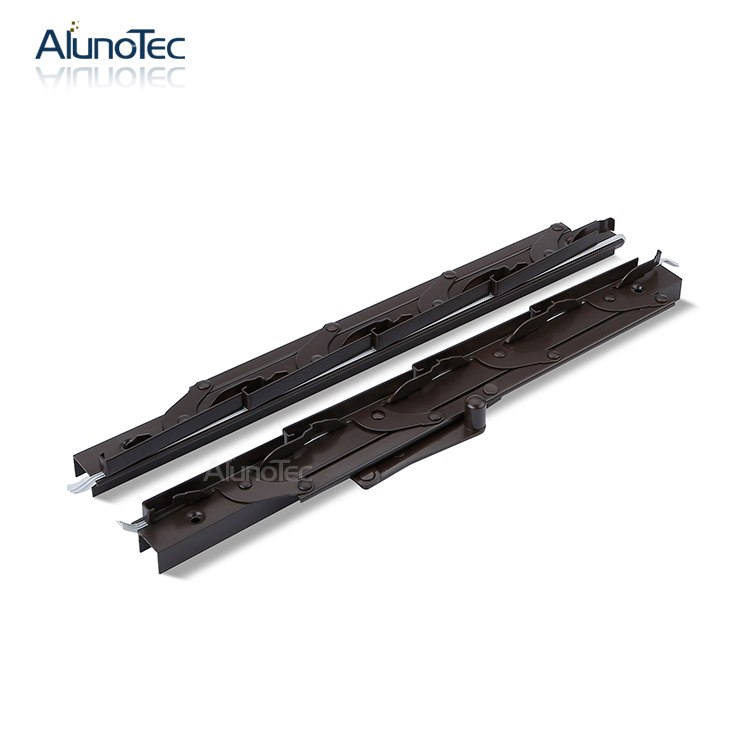

	Colors	Silver, Brown, Black, White
Clips (4")	Material	Aluminum
	Blade Thickness	5mm
	Set	One Left + One Right
Handle	Material	Aluminum Alloy
Packing	Method	Inner Plastic Film + Carton Box

❓ Frequently Asked Questions

🔹 How to place an order for the Louvre Frame?

1. Determine the frame height required based on your window opening.
2. Select your preferred louvre frame style and clip size.
3. Confirm technical details, color finishes, and pricing with our team.

🔹 How do I choose between 4'' or 6'' clips?

The 4'' clip is designed for 100-102mm width blades, while the 6'' clip is suitable for 150-152mm width blades.

🔹 What color options are available?

We offer four standard colors: Silver, Black, White, and Brown. Custom colors can also be manufactured upon request to match your specific design needs.

🔹 What are the primary benefits of installing these frames?

Louvre frames allow for precise adjustment of airflow. By tilting the blades upward, you can direct cool air toward the ceiling for better circulation and ventilation control.

🔹 What is the warranty coverage for this product?

We provide a comprehensive 10-year warranty on the aluminum structure and a 3-year warranty on the PVC clip components.

🔹 Can these be integrated into finished window series?

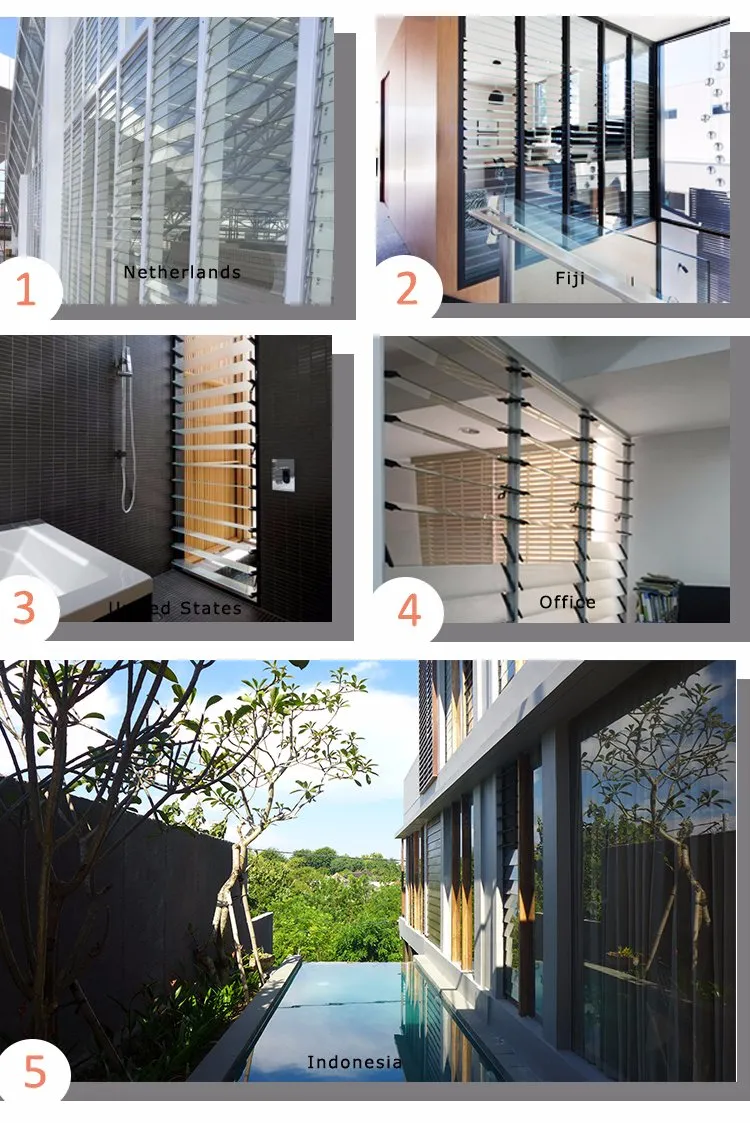

Yes, we have specific window frame series (55, 75, and 115 series) to create finished louver windows. These can also accommodate operators, security bars, and flyscreens.
