Basic Specifications
| Model NO. |
Aerogel Battery Thermal Panel |
Thermal Conductivity |
≤0.021W/M. K (at 25℃) |
| Max Operating Temp |
1200 ℃ |
Combustibility |
Grade A (Non Combustible) |
| Hydrophobic Rate |
>99% |
Density |
200 ± 30 Kg/M3 |
| Material |
Glass Fiber, Silica |
HS Code |
5602900000 |
Product Description

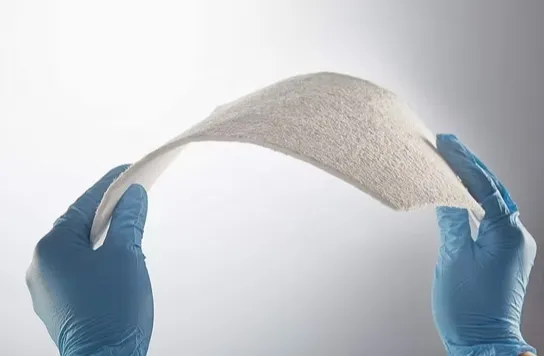

Utilizing nano-aerogel and glass fiber composite technology combined with chemical film-forming processes, this product is an innovative material offering superior fireproofing and thermal insulation. The aerogel composite material is composed of nano aerogel, glass fiber, pre-oxidized fiber, and other base materials, perfectly combining excellent performance with flexibility and toughness.
Product Category Comparison
| Category |
Glass Fiber Aerogel |
Wet-Process Aerogel |
Ceramic Fiber + SiO2 |
| Composition |
Glass Fiber + Silica |
Glass Fiber + Silica |
Ceramic Fiber + Silica |
| Application |
Energy Storage / Petrochemicals |
New Energy Vehicles |
Aviation / High-Speed Trains |
| Thermal Conductivity |
≤ 0.021 W/m·K |
≤ 0.021 W/m·K |
≤ 0.021 W/m·K |
| Flame Retardant |
V-0 |
V-0 |
V-0 |
Core Product Advantages
🔥
Exceptional Insulation
Ultra-low thermal conductivity (0.018-0.023 W/m·K), effectively blocking heat transfer in extreme environments.
🛡️

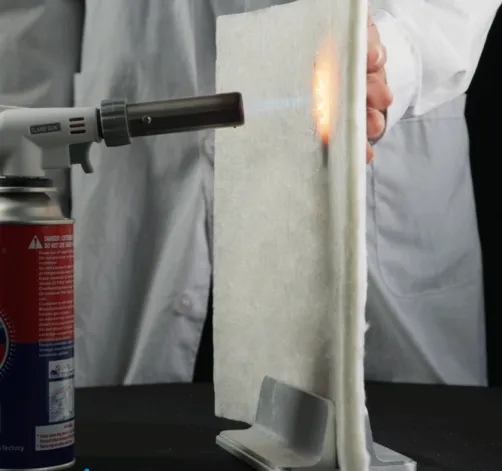

Top-Tier Fire Safety

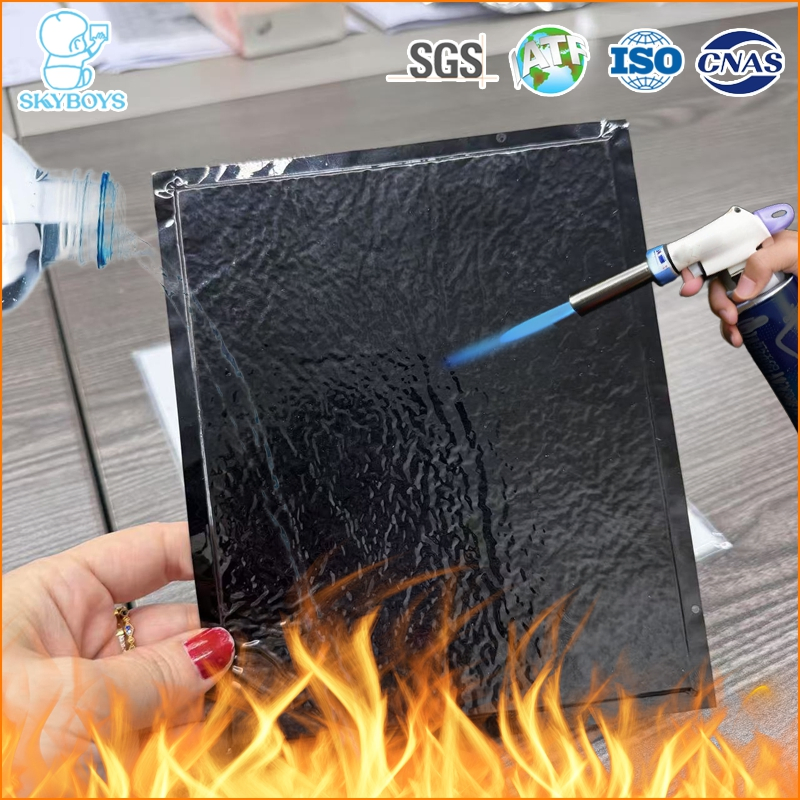

A1 Fireproof certification. Withstands direct flame at 1200°C-1600°C for 30 minutes without burn-through.
💧

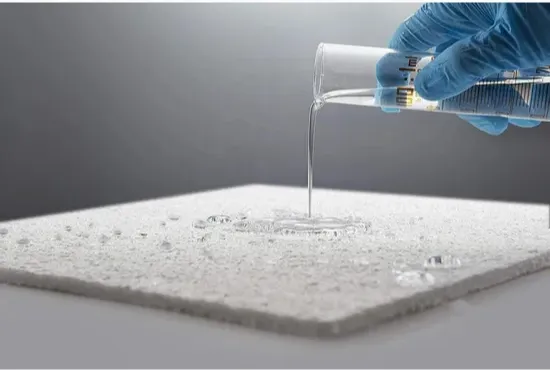

Hydrophobic Performance
Over 99% hydrophobic. 3D network structure prevents water ingress and ensures no deformation over time.
♻️
Eco-Friendly & Durable
100% recyclable with zero toxic emissions. Weather-resistant with a lifespan exceeding 20 years.
Global Applications
Our aerogel solutions are trusted across diverse sectors:
- Building and Construction: Insulation for walls, roofs, and floors.
- Industrial: Pipes, tanks, and high-temperature equipment.
- Automotive & Aerospace: Lightweight thermal protection for battery cells and aircraft.
- Electronics: Heat management for sensitive components.
- Cryogenics: Minimizing heat transfer in extremely low-temperature systems.
Services and Technologies
Cost Reduction: Our chemical film-forming process reduces production costs by 30% compared to traditional methods.
Performance Enhancement: Insulation coefficients improved by 50% at the same thickness.
Customization: We support thickness (3-50mm) and density (60-200kg/m³) customization.
Frequently Asked Questions
Q1: What is the thermal conductivity of your aerogel panel?
The thermal conductivity is exceptionally low, reaching ≤ 0.021 W/m·K at 25°C, which is about 1/5 of traditional insulation materials.
Q2: How does the product perform under direct fire?
Our material holds an A1 Fireproof rating. It can withstand direct flame exposure between 1200°C and 1600°C for up to 30 minutes without burn-through.
Q3: Can the thickness and density be customized?
Yes, we offer full customization. Thickness can range from 3mm to 50mm, and density from 60kg/m³ to 200kg/m³ to meet specific industrial needs.
Q4: What is the hydrophobic performance of the material?
The product is highly hydrophobic with a rate exceeding 99%, effectively preventing moisture from entering pipes or battery equipment.
Q5: Is the material environmentally friendly and recyclable?
Absolutely. Our production process is toxin-free and the material is 100% recyclable after its service life, meeting RoHS and REACH standards.
Q6: What certifications do your products hold?
Our products are SGS certified and comply with international standards including ASTM E84, ISO 14001, and GB/T 25352-2010.
